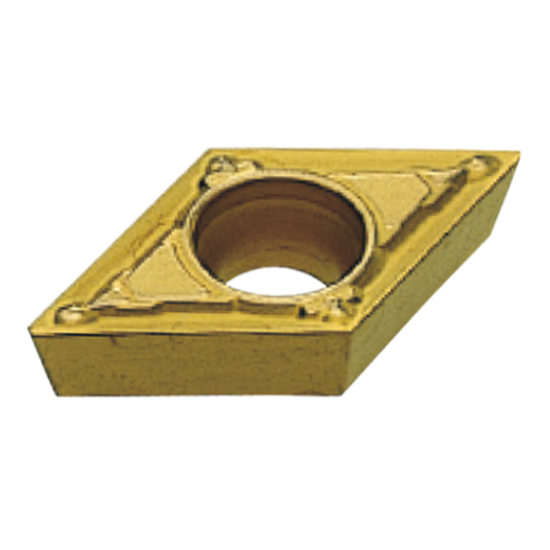

MITSUBISHI DCMT32.52MV MP3025 Turning Insert 55.0° Cermet 0.031 Radius

ANSI: DCMT32.52MV MP3025

ISO: DCMT11T308MV MP3025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT603127
Delivery date: 3-5 days
$11.68

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Grade MP3025 series inserts are a PVD coated cermet grade for Steel turning. You can expect excellent tool life when machining small diameter work pieces.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Medium
Grade MP3025
Insert Type Positive
Application Turning Insert
Package Size 10
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Coating Ti-Compound
Dimensional Specifications
Insert Size Ic 11 "32"
Corner Radius 0.0310 0.79MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
