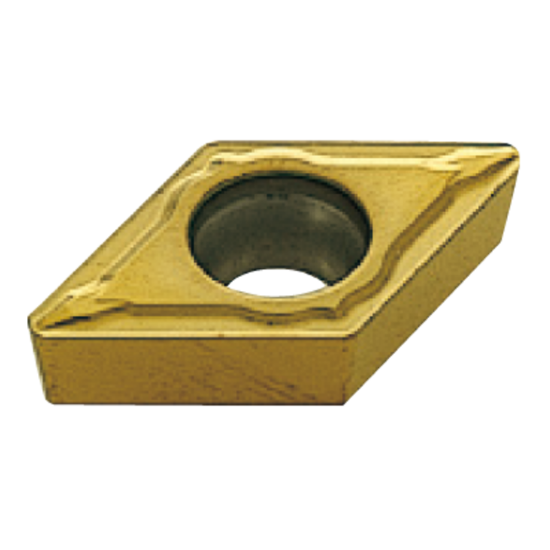

Picture of MITSUBISHI DCMT21.51FV AP25N Turning Insert 55.0° Cermet 0.016 Radius

MITSUBISHI DCMT21.51FV AP25N Turning Insert 55.0° Cermet 0.016 Radius

ANSI: DCMT21.51FV AP25N

ISO: DCMT070204FV AP25N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT160549
Delivery date: 3-5 days
$10.53

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Coated cermet (PVD coating) has superior wear and fracture resistance, and therefore provides a stable cutting performance.

Grade and Coating Description

Coated cermet (PVD coating) has superior wear and fracture resistance, and therefore provides a stable cutting performance. Material Grade: P, For Use On: Steel

Products specifications
Attribute name Attribute value
General Product Information
Coating Multi-Coated TiAlN
Insert/Tool Insert
Grade AP25N
Made In USA No
Shipping State Illinois
Insert Type Positive
Insert Application Semi Finishing, Medium
Application Turning Insert
Package Size 10
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.0160 0.41MM
Insert Size Ic 07 "21"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Cutting Edge Mat Cermet
Hand R/L Neutral
