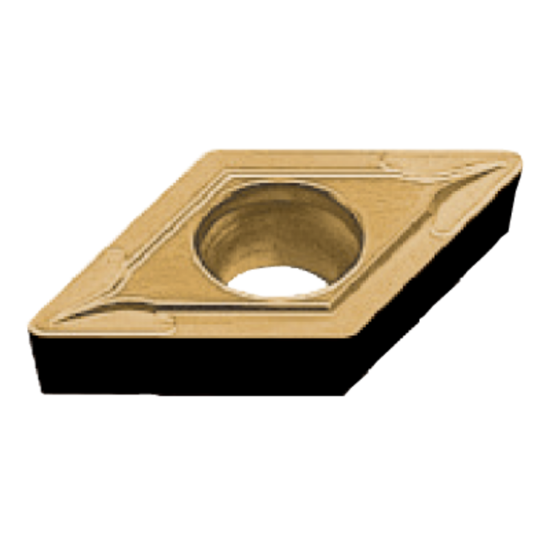

MITSUBISHI DCMT21.51 MP3025 Turning Insert 55.0° Cermet 0.016 Radius

ANSI: DCMT21.51 MP3025

ISO: DCMT070204 MP3025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT602706
Delivery date: 3-5 days
$10.53

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Grade MP3025 series inserts are a PVD coated cermet grade for Steel turning. You can expect excellent tool life when machining small diameter work pieces.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Application Medium, Semi Finishing
Application Turning Insert
Coating Ti-Compound
Made In USA No
Shipping State Illinois
Grade MP3025
Insert Type Positive
Package Size 10
Dimensional Specifications
Insert Size Ic 07 "21"
Cut Rating <40HRC Steel, Ductile Iron
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Cutting Edge Mat Cermet
