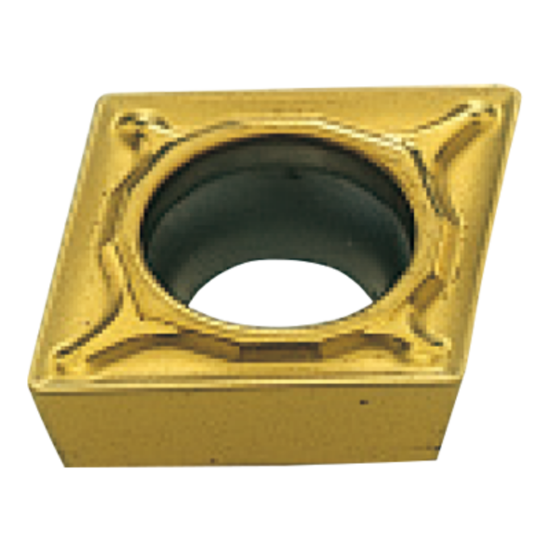

Picture of MITSUBISHI CPMT21.51MQ AP25N Turning Insert 80.0° Cermet 0.016 Radius

MITSUBISHI CPMT21.51MQ AP25N Turning Insert 80.0° Cermet 0.016 Radius

ANSI: CPMT21.51MQ AP25N

ISO: CPMT060204MQ AP25N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT129761
Delivery date: 3-5 days
$8.93

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Coated cermet (PVD coating) has superior wear and fracture resistance, and therefore provides a stable cutting performance. Material Grade: P, For Use On: Steel

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Medium, Semi Finishing
Application Turning Insert
Made In USA No
Insert Type Positive
Coating Multi-Coated TiAlN
Insert/Tool Insert
Package Size 10
Grade AP25N
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 06 "21"
Corner Radius 0.0160 0.41MM
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style CP
Hand R/L Neutral
Insert Shape/Cutter Pocket Shape 80.0°
