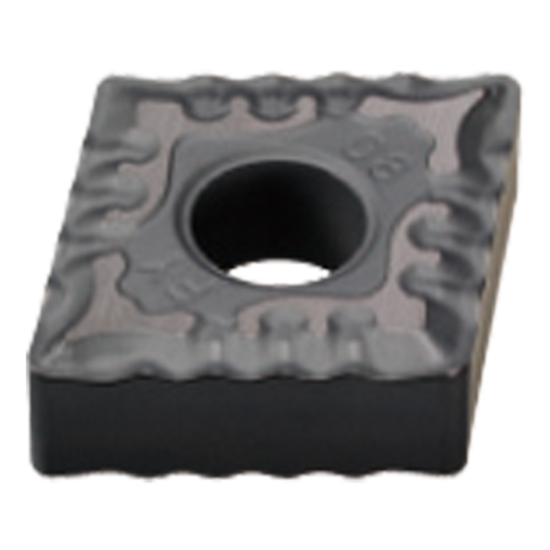

MITSUBISHI CNMG432FY MP3025 Turning Insert 80.0° Cermet 0.031 Radius

ANSI: CNMG432FY MP3025

ISO: CNMG120408FY MP3025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT615486
Delivery date: 3-5 days
$9.64

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Grade MP3025 series inserts are a PVD coated cermet grade for Steel turning. You can expect excellent tool life when machining small diameter work pieces.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert Application Medium, Semi Finishing
Package Size 10
Grade MP3025
Insert/Tool Insert
Coating Ti-Compound
Insert Type Negative
Application Turning Insert
Made In USA No
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 12 "43"
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat Cermet
