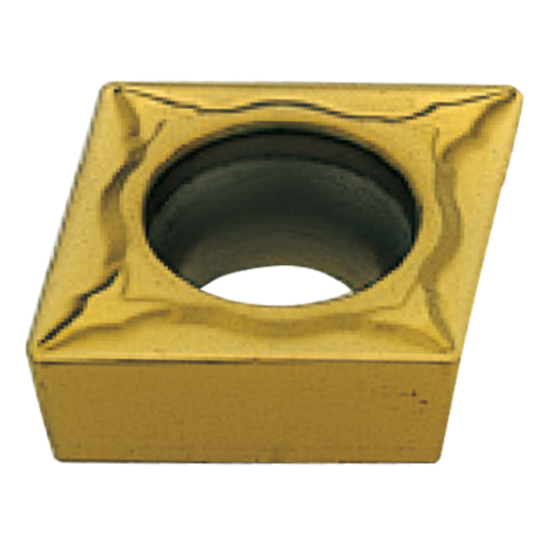

Picture of MITSUBISHI CCMT21.51FV AP25N Turning Insert 80.0° Cermet 0.016 Radius

MITSUBISHI CCMT21.51FV AP25N Turning Insert 80.0° Cermet 0.016 Radius

ANSI: CCMT21.51FV AP25N

ISO: CCMT060204FV AP25N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT152485
Delivery date: 3-5 days
$8.92

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Coated cermet (PVD coating) has superior wear and fracture resistance, and therefore provides a stable cutting performance. Material Grade: P, For Use On: Steel

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Application Turning Insert
Package Size 10
Coating Multi-Coated TiAlN
Made In USA No
Shipping State Illinois
Insert Application Finishing, Semi Finishing
Insert Type Positive
Grade AP25N
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 06 "21"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Style CC
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Neutral
