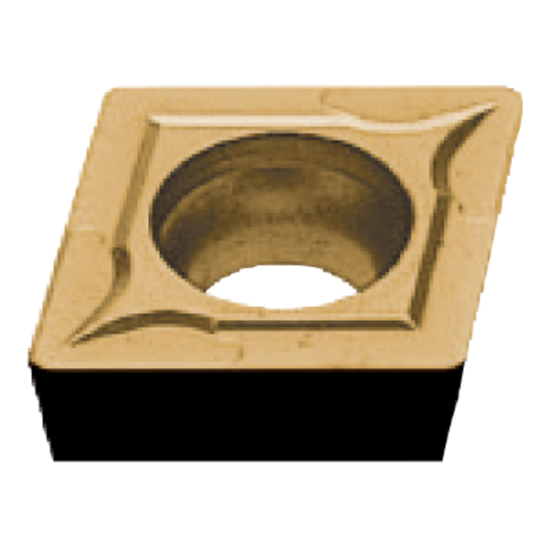

MITSUBISHI CCMT21.51 MP3025 Turning Insert 80.0° Cermet 0.016 Radius

ANSI: CCMT21.51 MP3025

ISO: CCMT060204 MP3025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT602626
Delivery date: 3-5 days
$8.92

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

Grade MP3025 series inserts are a PVD coated cermet grade for Steel turning. You can expect excellent tool life when machining small diameter work pieces.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert/Tool Insert
Coating Ti-Compound
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Turning Insert
Made In USA No
Grade MP3025
Package Size 10
Dimensional Specifications
Cut Rating <40HRC Steel, Ductile Iron
Insert Size Ic 06 "21"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Cutting Edge Mat Cermet
Insert Style CC
Insert Shape/Cutter Pocket Shape 80.0°
