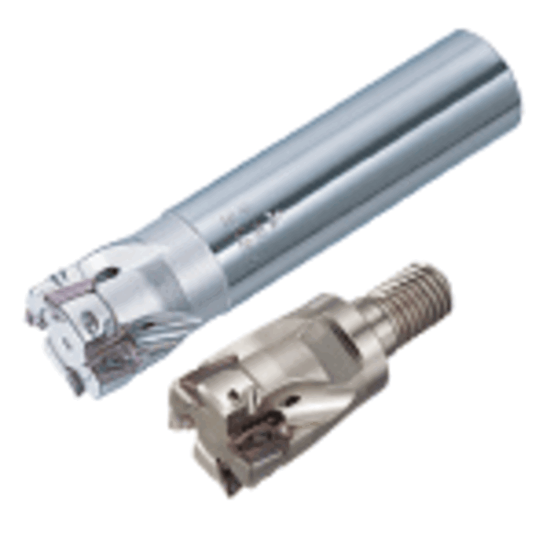

Picture of MITSUBISHI APX3000R162SA16SA Milling 90.0°, Face Mill Cutter 3.34 Diameter Cylindrical Shank0.6299

MITSUBISHI APX3000R162SA16SA Milling 90.0°, Face Mill Cutter 3.34 Diameter Cylindrical Shank0.6299

ANSI: APX3000R162SA16SA

ISO: APX3000R162SA16SA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT455970
Delivery date: 3-5 days
$328.83

Mitsubishi APX3000R162SA16SA, Shank Type Multi-Functional Indexable Cutter, 16mm Cutting Diameter

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling, Face Milling, Ramp Milling, Side Milling
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Depth Of Cut Max 0.3937
Tool Material Steel
Insert Size Ic 12
Cutter Dia 3.3460 84.98MM
Cut Dia Max 3.3465 85.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Cool Sply Type Internal
Coolant Thru Yes
Insert Style AO
