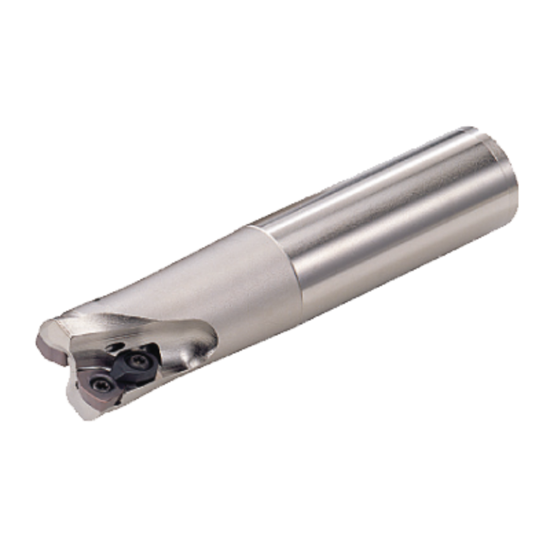

Picture of MITSUBISHI AJXU09R182FA16S Milling Feed Mill Milling Cutter 1.25 Diameter Cylindrical Shank1.0000

MITSUBISHI AJXU09R182FA16S Milling Feed Mill Milling Cutter 1.25 Diameter Cylindrical Shank1.0000

ANSI: AJXU09R182FA16S

ISO: AJXU09R182FA16S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT347320
Delivery date: 3-5 days
$344.15

Details

Mitsubishi AJXU09R182FA16S APX Shank Type Multi-Functional Radius Milling Cutter, 1.250" Cutting Diameter

Mitsubishi AJXU09R182FA16S APX Shank Type Multi-Functional Radius Milling Cutter, 1.250" Cutting Diameter

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Insert Size Ic 9
Overall Len 5.6250 142.88MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 3
Cut Dia Max 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.0790
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Internal
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Insert Style JD
