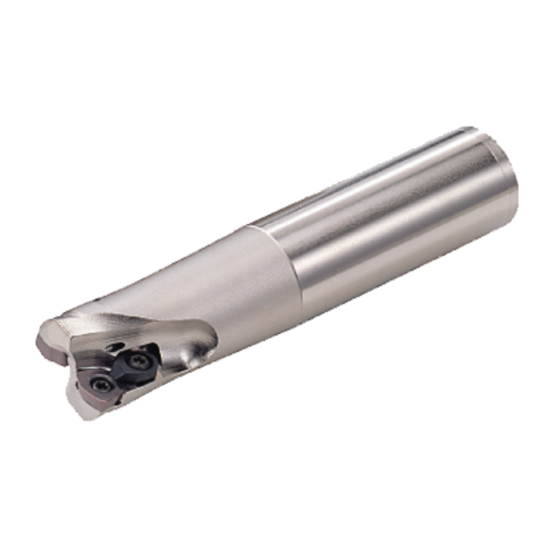

Picture of MITSUBISHI AJXU09R162WA16S Milling Feed Mill Milling Cutter 1.00 Diameter Cylindrical Shank1.0000

MITSUBISHI AJXU09R162WA16S Milling Feed Mill Milling Cutter 1.00 Diameter Cylindrical Shank1.0000

ANSI: AJXU09R162WA16S

ISO: AJXU09R162WA16S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MITSUBISHI
SKU: MIT241322
Delivery date: 3-5 days
$358.97

Details

Mitsubishi AJXU09R162WA16S APX Shank Type Multi-Functional Radius Milling Cutter, 1.000" Cutting Diameter

Mitsubishi AJXU09R162WA16S APX Shank Type Multi-Functional Radius Milling Cutter, 1.000" Cutting Diameter

Products specifications
Attribute name Attribute value
General Product Information
Application Feed Milling, Face Milling, Slot Milling, Ramp Milling, Copy Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Overall Len 5.6250 142.88MM
Insert Size Ic 9
Flutes/Inserts 2
Depth Of Cut Max 0.0790
Tool Material Steel
Cutter Dia 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Right
Cool Sply Type Internal
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Insert Style JD
