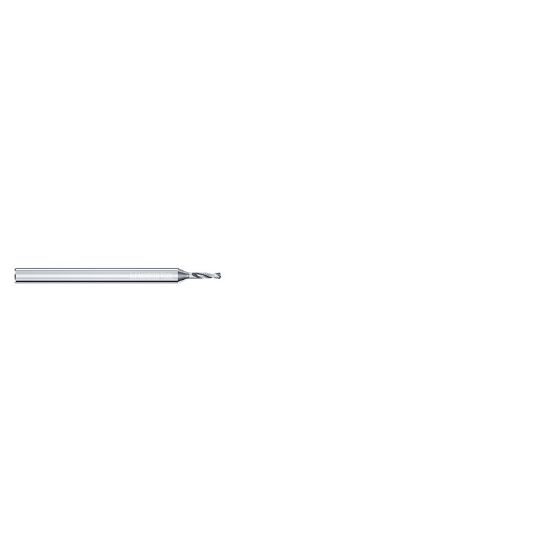

MIKRON 2.PFT.064.0 Pilot Drill Solid 140° 0.025 Diameter Cylindrical 0.118 1.574 OAL 2 Flute 3.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.PFT.064.0
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Connecticut
Made In USA No
Application Pilot Drilling, Drilling
Package Size 1
Dimensional Specifications
Flute Length 0.0760 1.93MM
Flutes/Inserts 2
Included Angle 140°
Cut Dia Min 0.0252 0.64MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Dia Deep 3.0XD
Cutter Dia 0.0252 0.64MM
Overall Len 1.5748 40.00MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Machine Side Connection Size 0.1181 3.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Multi Spindle Yes
Job Shop Yes
Aerospace Yes
