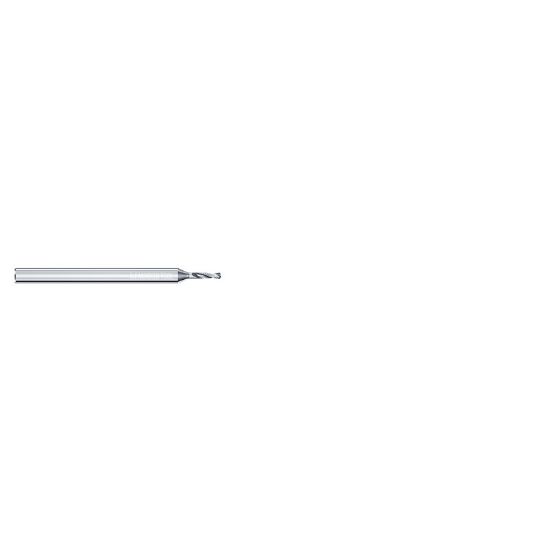

MIKRON 2.PFT.036.0 Pilot Drill Solid 140° 0.014 Diameter Cylindrical 0.118 1.574 OAL 2 Flute 3.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.PFT.036.0
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Pilot Drilling, Drilling
Made In USA No
Shipping State Connecticut
Dimensional Specifications
Dia Deep 3.0XD
Machine Side Connection Size 0.1181 3.00MM
Flute Length 0.0430 1.09MM
Cutter Dia 0.0142 0.36MM
Cut Dia Min 0.0142 0.36MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Flutes/Inserts 2
Included Angle 140°
Overall Len 1.5748 40.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
Multi Spindle Yes
