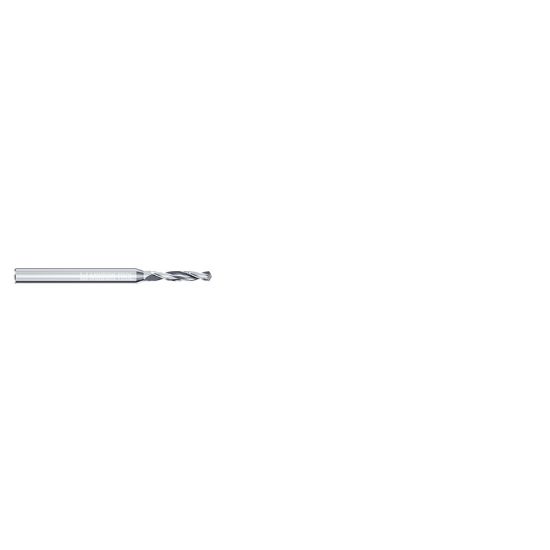

MIKRON 2.MD.210171.0 Carbide Drill Solid 118° 0.067 Diameter Cylindrical 0.078 1.496 OAL 2 Flute 5.0XD-8.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.MD.210171.0
Delivery date: 3-5 days
$17.83

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Made In USA No
Package Size 5
Shipping State Connecticut
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.0673 1.71MM
Machine Side Connection Size 0.0787 2.00MM
Cut Dia Min 0.0673 1.71MM
Overall Len 1.4961 38.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 5.0XD-8.0XD
Included Angle 118°
Shank/Pilot Dia 0.0787 2.00MM
Flutes/Inserts 2
Flute Length 0.4050 10.29MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Medical Yes
Aerospace Yes
Job Shop Yes
