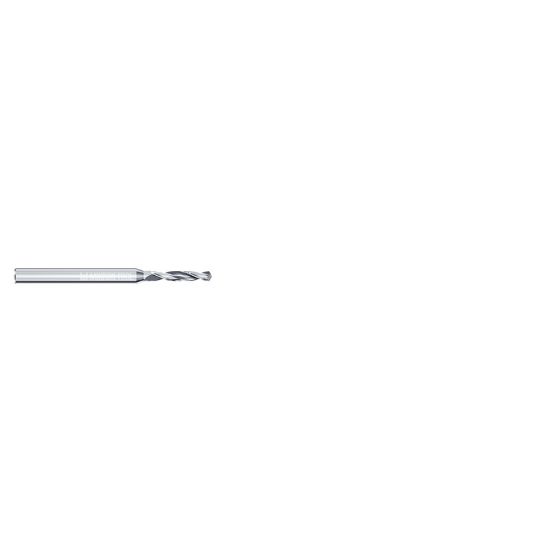

MIKRON 2.MD.210165.0 Carbide Drill Solid 118° 0.065 Diameter Cylindrical 0.078 1.496 OAL 2 Flute 5.0XD-8.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.MD.210165.0
Delivery date: 3-5 days
$16.74

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Connecticut
Application Dilling, Drilling Flood Coolant
Made In USA No
Package Size 5
Dimensional Specifications
Cut Dia Min 0.0650 1.65MM
Tool Material Carbide
Dia Deep 5.0XD-8.0XD
Included Angle 118°
Overall Len 1.4961 38.00MM
Machine Side Connection Size 0.0787 2.00MM
Machine Side Connection Type Cylindrical
Flute Length 0.4070 10.34MM
Cutter Dia 0.0650 1.65MM
Flutes/Inserts 2
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.0787 2.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Multi Spindle Yes
Medical Yes
