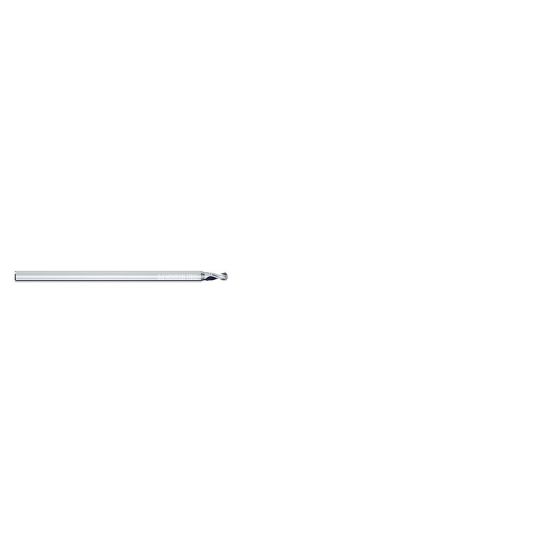

MIKRON 2.MD.200079.0 Carbide Drill Solid 118° 0.031 Diameter Cylindrical 0.039 1.181 OAL 2 Flute 1.5XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.MD.200079.0
Delivery date: 3-5 days
$10.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Connecticut
Application Dilling, Drilling Flood Coolant
Made In USA No
Package Size 5
Dimensional Specifications
Flute Length 0.0480 1.22MM
Cut Dia Min 0.0311 0.79MM
Flutes/Inserts 2
Dia Deep 1.5XD
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 1.1811 30.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.0394 1.00MM
Shank/Pilot Dia 0.0394 1.00MM
Included Angle 118°
Cutter Dia 0.0311 0.79MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Multi Spindle Yes
Medical Yes
