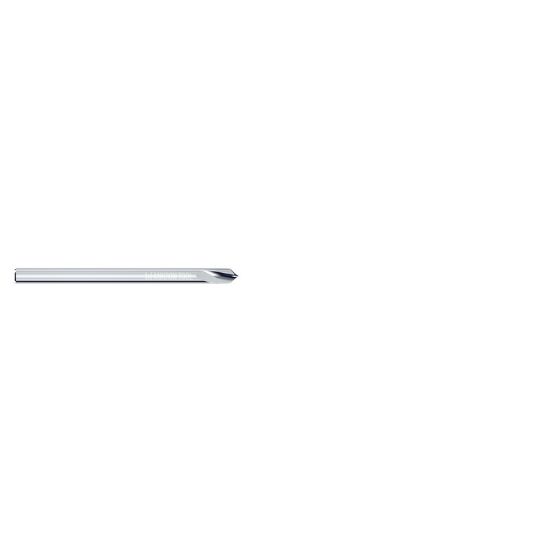

MIKRON 2.MC.090200.0 Center Drill Solid 90° 0.078 Diameter Cylindrical 0.078 1.180 OAL 2 Flute 1.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.MC.090200.0
Delivery date: 3-5 days
$27.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Connecticut
Application Drilling, Center Drilling
Made In USA No
Package Size 3
Dimensional Specifications
Overall Len 1.1800 29.97MM
Dia Deep 1.0XD
Cut Dia Min 0.0787 2.00MM
Included Angle 90°
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.0787 2.00MM
Flutes/Inserts 2
Cutter Dia 0.0787 2.00MM
Machine Side Connection Size 0.0787 2.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 0.0790 2.01MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Medical Yes
Aerospace Yes
Job Shop Yes
