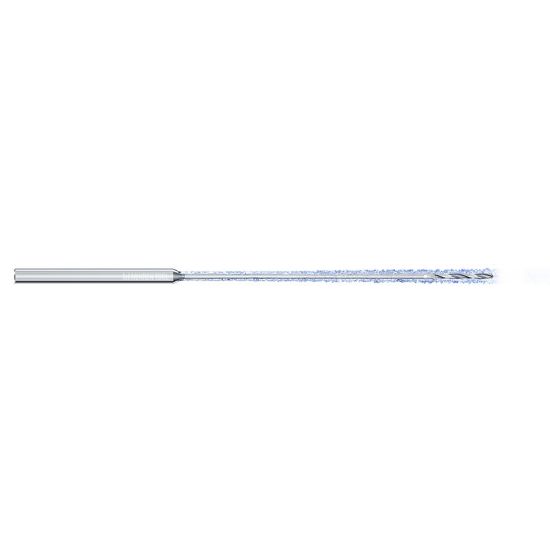

MIKRON 2.CFT.50095.IK.0 Carbide Drill Coolant Thru 140° 0.037 Diameter Cylindrical 0.118 3.350 OAL 2 Flute 50.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CFT.50095.IK.0
Delivery date: 3-5 days
$156.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Drilling Thru Coolant, Deep Hole Drilling
Made In USA No
Shipping State Connecticut
Package Size 1
Dimensional Specifications
Cut Rating High Temp, Titanium
Flute Length 1.8700 47.50MM
Included Angle 140°
Dia Deep 50.0XD
Overall Len 3.3500 85.09MM
Tool Material Carbide
Cutter Dia 0.0374 0.95MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cut Dia Min 0.0374 0.95MM
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Multi Spindle Yes
Medical Yes
Aerospace Yes
Job Shop Yes
