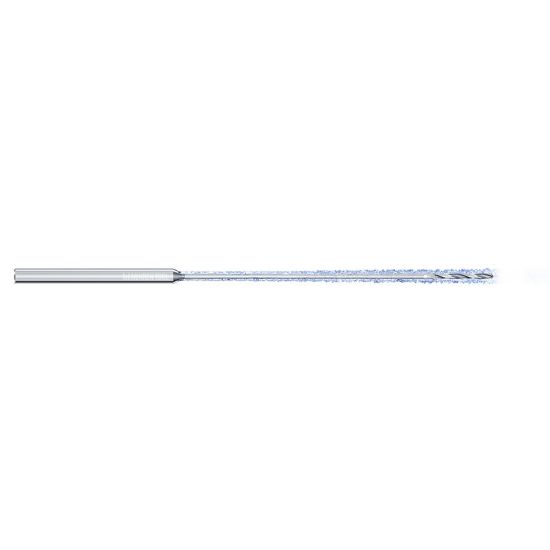

MIKRON 2.CFT.50082.IK.0 Carbide Drill Coolant Thru 140° 0.032 Diameter Cylindrical 0.118 3.150 OAL 2 Flute 50.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CFT.50082.IK.0
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Drilling, Drilling Thru Coolant
Shipping State Connecticut
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 0.0323 0.82MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.1500 80.01MM
Cut Rating High Temp, Titanium
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Flute Length 1.6100 40.89MM
Included Angle 140°
Dia Deep 50.0XD
Shank/Pilot Dia 0.1181 3.00MM
Cutter Dia 0.0323 0.82MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Medical Yes
