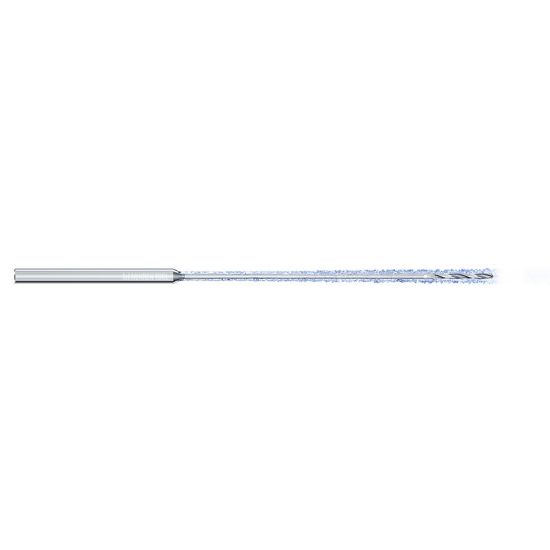

MIKRON 2.CFT.50032.IK.0 Carbide Drill Coolant Thru 140° 0.012 Diameter Cylindrical 0.118 2.090 OAL 2 Flute 50.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CFT.50032.IK.0
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Drilling Thru Coolant, Drilling
Shipping State Connecticut
Package Size 1
Made In USA No
Dimensional Specifications
Cut Rating High Temp, Titanium
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 2.0900 53.09MM
Shank/Pilot Dia 0.1181 3.00MM
Flute Length 0.6300 16.00MM
Cutter Dia 0.0126 0.32MM
Cut Dia Min 0.0126 0.32MM
Dia Deep 50.0XD
Included Angle 140°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Medical Yes
