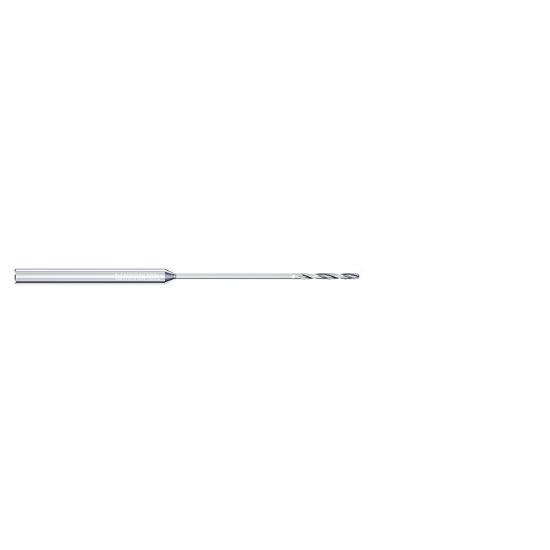

MIKRON 2.CFT.30075.0 Carbide Drill Solid 140° 0.029 Diameter Cylindrical 0.118 2.360 OAL 2 Flute 30.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CFT.30075.0
Delivery date: 3-5 days
$96.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Dilling
Package Size 1
Made In USA No
Shipping State Connecticut
Dimensional Specifications
Flute Length 0.8860 22.50MM
Cut Dia Min 0.0295 0.75MM
Cutter Dia 0.0295 0.75MM
Machine Side Connection Size 0.1181 3.00MM
Overall Len 2.3600 59.94MM
Cut Rating High Temp, Titanium
Flutes/Inserts 2
Included Angle 140°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Dia Deep 30.0XD
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
Medical Yes
Aerospace Yes
