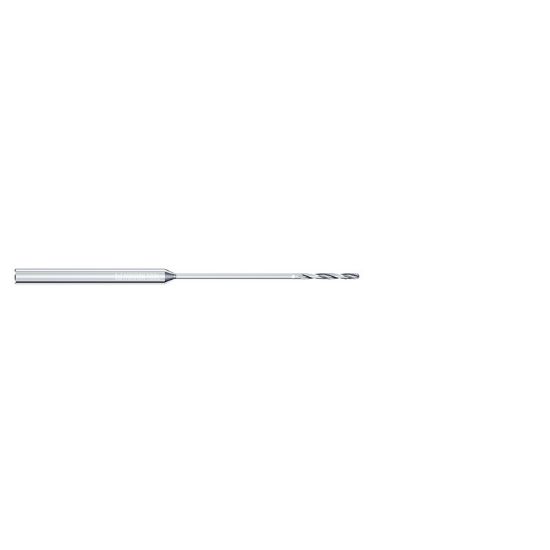

MIKRON 2.CFS.30095.0 Deep Hole Coolant Thru 140° 0.037 Diameter Cylindrical 0.118 2.520 OAL 2 Flute 30.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CFS.30095.0
Delivery date: 3-5 days
$105.49

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Connecticut
Application Drilling Long Reach, Drilling Flood Coolant, Drilling
Made In USA No
Dimensional Specifications
Cut Dia Min 0.0374 0.95MM
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Overall Len 2.5200 64.01MM
Flute Length 1.1200 28.45MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Cutter Dia 0.0374 0.95MM
Shank/Pilot Dia 0.1181 3.00MM
Included Angle 140°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 30.0XD
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Multi Spindle Yes
Medical Yes
