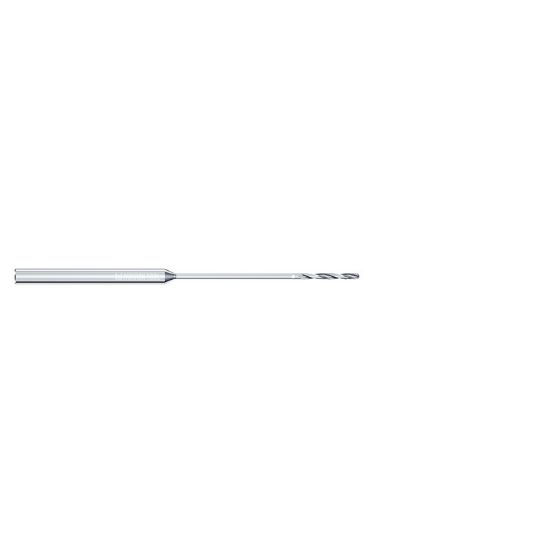

MIKRON 2.CFS.30083.0 Deep Hole Coolant Thru 140° 0.032 Diameter Cylindrical 0.118 2.360 OAL 2 Flute 30.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CFS.30083.0
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Connecticut
Package Size 1
Application Drilling Long Reach, Drilling, Drilling Flood Coolant
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.1181 3.00MM
Overall Len 2.3600 59.94MM
Flutes/Inserts 2
Included Angle 140°
Cutter Dia 0.0327 0.83MM
Cut Dia Min 0.0327 0.83MM
Flute Length 0.9800 24.89MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Dia Deep 30.0XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Medical Yes
Aerospace Yes
Job Shop Yes
