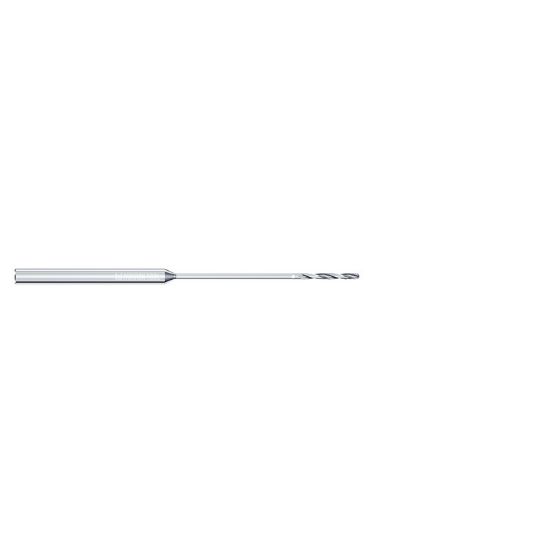

MIKRON 2.CFS.30015.0 Deep Hole Coolant Thru 140° 0.006 Diameter Cylindrical 0.118 1.770 OAL 2 Flute 30.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CFS.30015.0
Delivery date: 3-5 days
$114.22

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Flood Coolant, Drilling, Drilling Long Reach
Made In USA No
Shipping State Connecticut
Package Size 1
Dimensional Specifications
Included Angle 140°
Shank/Pilot Dia 0.1181 3.00MM
Overall Len 1.7700 44.96MM
Flute Length 0.1770 4.50MM
Cutter Dia 0.0060 0.15MM - #97
Flutes/Inserts 2
Machine Side Connection Size 0.1181 3.00MM
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron
Cut Dia Min 0.0060 0.15MM - #97
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 30.0XD
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Medical Yes
