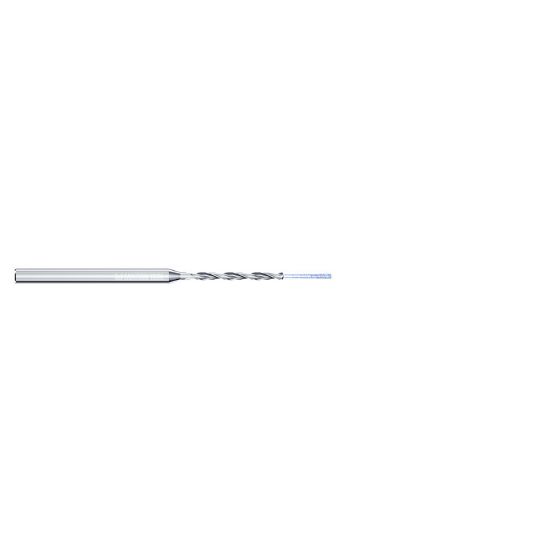

MIKRON 2.CD.100560.CA Carbide Drill Coolant Thru 140° 0.220 Diameter Cylindrical 0.236 4.470 OAL 2 Flute 10.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CD.100560.CA
Delivery date: 3-5 days
$242.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Deep Hole Drilling, Drilling, Drilling Thru Coolant
Shipping State Connecticut
Made In USA No
Package Size 1
Dimensional Specifications
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Flute Length 2.2000 55.88MM
Flutes/Inserts 2
Included Angle 140°
Cutter Dia 0.2205 5.60MM
Machine Side Connection Size 0.2362 6.00MM
Cut Dia Min 0.2205 5.60MM
Overall Len 4.4700 113.54MM
Dia Deep 10.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Multi Spindle Yes
Job Shop Yes
Aerospace Yes
