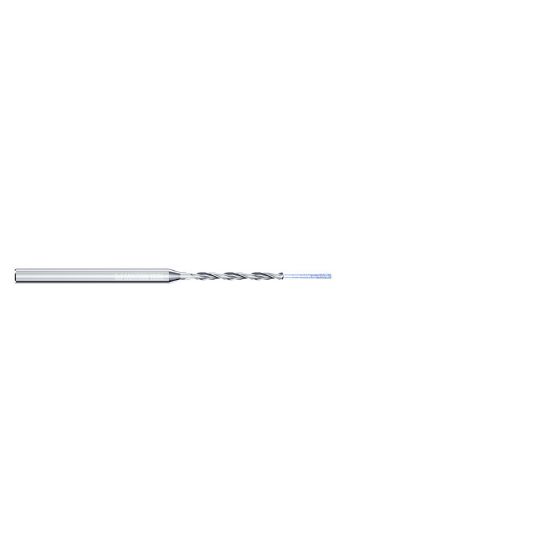

MIKRON 2.CD.100500.CA Carbide Drill Coolant Thru 140° 0.196 Diameter Cylindrical 0.236 4.170 OAL 2 Flute 10.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CD.100500.CA
Delivery date: 3-5 days
$228.45

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Drilling Thru Coolant, Deep Hole Drilling
Made In USA No
Package Size 1
Shipping State Connecticut
Dimensional Specifications
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Flutes/Inserts 2
Flute Length 1.9700 50.04MM
Included Angle 140°
Cutter Dia 0.1969 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 4.1700 105.92MM
Cut Dia Min 0.1969 5.00MM
Machine Side Connection Size 0.2362 6.00MM
Dia Deep 10.0XD
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
