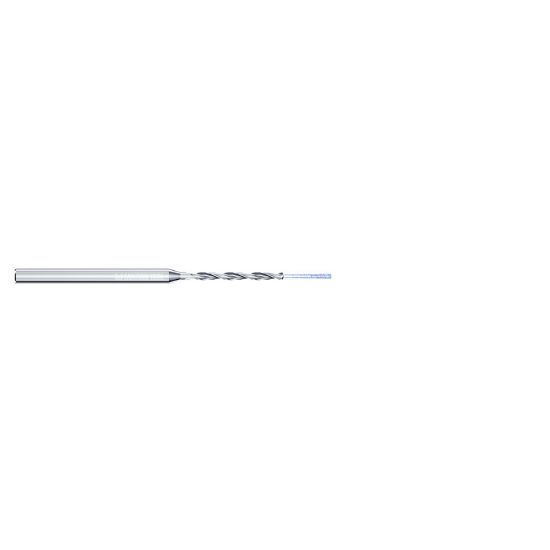

MIKRON 2.CD.100195.CA Carbide Drill Coolant Thru 140° 0.076 Diameter Cylindrical 0.157 2.680 OAL 2 Flute 10.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CD.100195.CA
Delivery date: 3-5 days
$144.50

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Thru Coolant, Deep Hole Drilling, Drilling
Shipping State Connecticut
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 2.6800 68.07MM
Flute Length 0.7680 19.51MM
Shank/Pilot Dia 0.1574 4.00MM
Cutter Dia 0.0768 1.95MM
Dia Deep 10.0XD
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Cut Dia Min 0.0768 1.95MM
Machine Side Connection Size 0.1575 4.00MM
Flutes/Inserts 2
Included Angle 140°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Multi Spindle Yes
