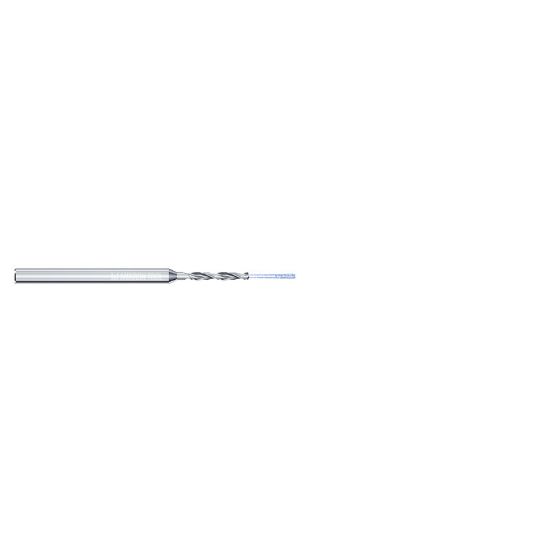

MIKRON 2.CD.060175.CA Carbide Drill Coolant Thru 140° 0.068 Diameter Cylindrical 0.157 2.320 OAL 2 Flute 6.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: MIK2.CD.060175.CA
Delivery date: 3-5 days
$125.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling Thru Coolant, Drilling
Shipping State Connecticut
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Dia Deep 6.0XD
Flute Length 0.4130 10.49MM
Cutter Dia 0.0689 1.75MM
Cut Dia Min 0.0689 1.75MM
Shank/Pilot Dia 0.1574 4.00MM
Overall Len 2.3200 58.93MM
Cut Rating <53HRC Steel, Ductile Iron, Gray Iron
Machine Side Connection Size 0.1575 4.00MM
Flutes/Inserts 2
Included Angle 140°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Multi Spindle Yes
