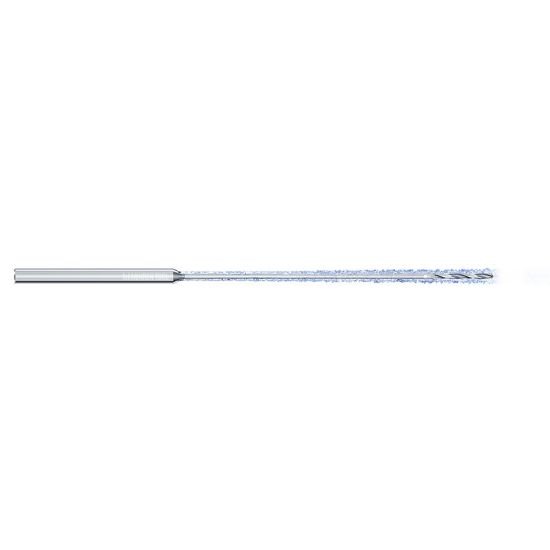

Picture of Micron 2.CFS.50080.IK.0 Carbide Drill Coolant Thru 140° 0.031 Diameter Cylindrical 0.118 3.150 OAL 2 Flute 50.0XD

Micron 2.CFS.50080.IK.0 Carbide Drill Coolant Thru 140° 0.031 Diameter Cylindrical 0.118 3.150 OAL 2 Flute 50.0XD

Part Number: MIK2.CFS.50080.IK.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: 1123328
Vendor: Sussex Tool and Supply
$156.59
MIKRON 2.CFS.50080.IK.0 Carbide Drill Shank 0.1181 Uncoated 0.0315 0.80MM Drill Dia 1.5700 39.88MM 50.0XD Flute Length Carbide
Products specifications
Attribute name Attribute value
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminium, <25HRC Steel, Brass, Grey Iron
Mach Side Connection Size 0.1181 3.00MM
Overall Length 3.1500 80.01MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 2
Tool Dia 0.0315 0.80MM
Type Of Tool Drill
Included Angle 140°
Flute Length 1.5700 39.88MM
Cut Dia Min 0.0315 0.80MM
Dia Deep 50.0x Dia
Multi Spindle Yes
