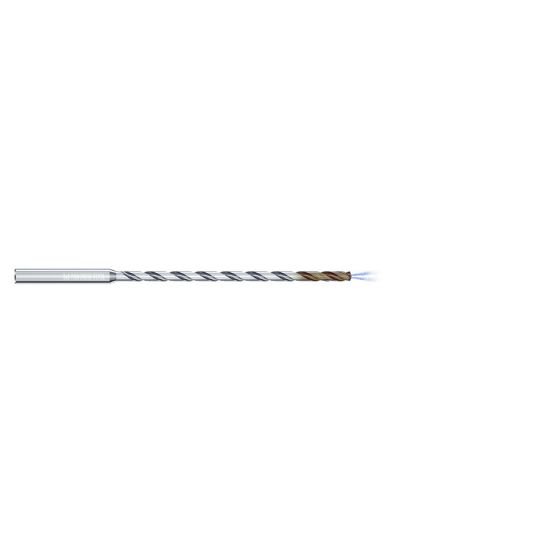

Picture of Micron 2.CD.200220.IC Carbide Drill Coolant Thru 140° 0.086 Diameter Cylindrical 0.157 3.740 OAL 2 Flute 20.0XD

Micron 2.CD.200220.IC Carbide Drill Coolant Thru 140° 0.086 Diameter Cylindrical 0.157 3.740 OAL 2 Flute 20.0XD

Part Number: MIK2.CD.200220.IC
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1122002
Vendor: Sussex Tool and Supply
$308.36

Description

MIKRON 2.CD.200220.IC Carbide Drill Shank 0.1574 TiAlN 0.0866 2.20MM Drill Dia 1.7300 43.94MM 20.0XD Flute Length Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.7400 95.00MM
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 2
Tool Dia 0.0866 2.20MM
Flute Length 1.7300 43.94MM
Dia Deep 20.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Stainless Steel, High Temp
Cut Dia Min 0.0866 2.20MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
