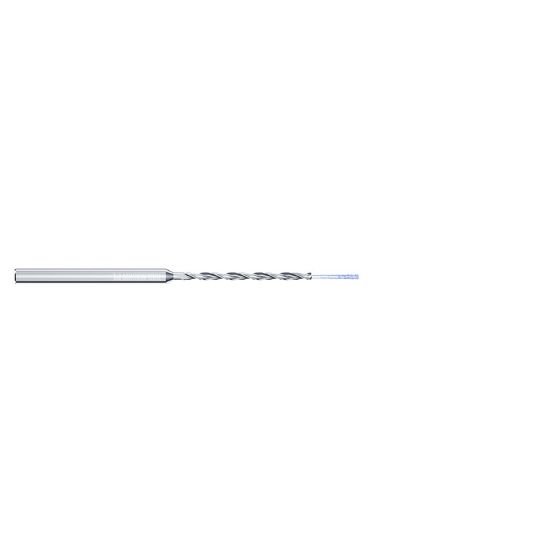

Picture of Micron 2.CD.150325.CA Carbide Drill Coolant Thru 140° 0.128 Diameter Cylindrical 0.236 4.060 OAL 2 Flute 15.0XD

Micron 2.CD.150325.CA Carbide Drill Coolant Thru 140° 0.128 Diameter Cylindrical 0.236 4.060 OAL 2 Flute 15.0XD

Part Number: MIK2.CD.150325.CA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: 1122619
Vendor: Sussex Tool and Supply
$194.92
MIKRON 2.CD.150325.CA Carbide Drill Shank 0.2362 Uncoated 0.1280 3.25MM Drill Dia 1.9200 48.77MM 15.0XD Flute Length Carbide
Products specifications
Attribute name Attribute value
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Mach Side Connection Size 0.2362 6.00MM
Overall Length 4.0600 103.12MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1280 3.25MM
Type Of Tool Drill
Included Angle 140°
Flute Length 1.9200 48.77MM
Cut Dia Min 0.1280 3.25MM
Dia Deep 15.0x Dia
Multi Spindle Yes
