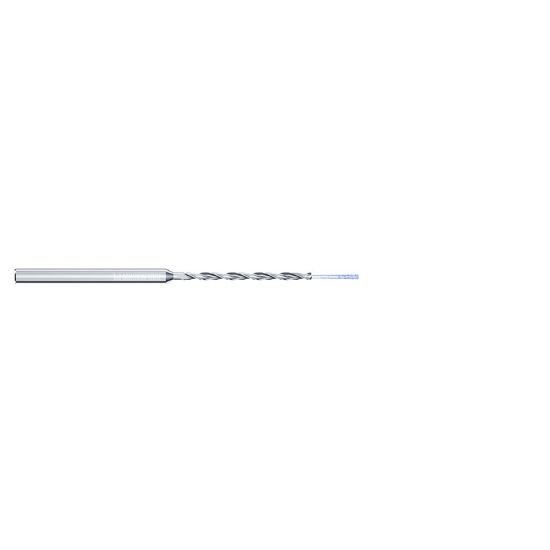

Picture of Micron 2.CD.150315.CA Carbide Drill Coolant Thru 140° 0.124 Diameter Cylindrical 0.236 4.060 OAL 2 Flute 15.0XD

Micron 2.CD.150315.CA Carbide Drill Coolant Thru 140° 0.124 Diameter Cylindrical 0.236 4.060 OAL 2 Flute 15.0XD

Part Number: MIK2.CD.150315.CA
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$194.92
SKU: 1122617

Description

MIKRON 2.CD.150315.CA Carbide Drill Shank 0.2362 Uncoated 0.1240 3.15MM Drill Dia 1.8600 47.24MM 15.0XD Flute Length Carbide
Products specifications
Attribute name Attribute value
General Information
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Multi Spindle Yes
Dimensions & Sizing
Overall Length 4.0600 103.12MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1240 3.15MM
Flute Length 1.8600 47.24MM
Dia Deep 15.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Cut Dia Min 0.1240 3.15MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
