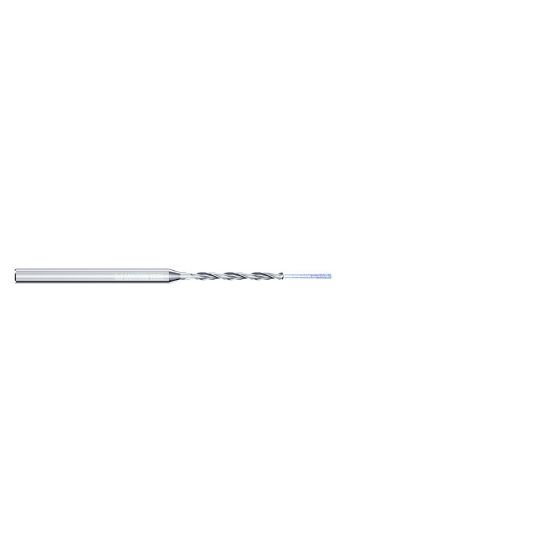

Picture of Micron 2.CD.100340.CA Carbide Drill Coolant Thru 140° 0.133 Diameter Cylindrical 0.236 3.500 OAL 2 Flute 10.0XD

Micron 2.CD.100340.CA Carbide Drill Coolant Thru 140° 0.133 Diameter Cylindrical 0.236 3.500 OAL 2 Flute 10.0XD

Part Number: MIK2.CD.100340.CA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: 1122443
Vendor: Sussex Tool and Supply
$166.21
MIKRON 2.CD.100340.CA Carbide Drill Shank 0.2362 Uncoated 0.1339 3.40MM Drill Dia 1.3400 34.04MM 10.0XD Flute Length Carbide
Products specifications
Attribute name Attribute value
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Gray Iron, <53HRC Steel, Ductile Iron
Mach Side Connection Size 0.2362 6.00MM
Overall Length 3.5000 88.90MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.1339 3.40MM
Type Of Tool Drill
Included Angle 140°
Flute Length 1.3400 34.04MM
Cut Dia Min 0.1339 3.40MM
Dia Deep 10.0x Dia
Multi Spindle Yes
