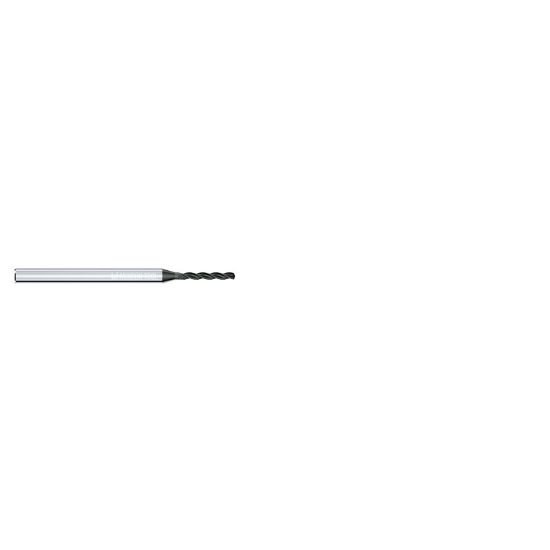

Picture of Micron 2.CD.050295.A Carbide Drill Solid 130° 0.116 Diameter Cylindrical 0.157 2.559 OAL 3 Flute 5.0XD

Micron 2.CD.050295.A Carbide Drill Solid 130° 0.116 Diameter Cylindrical 0.157 2.559 OAL 3 Flute 5.0XD

Part Number: MIK2.CD.050295.A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: 1123112
Vendor: Sussex Tool and Supply
$109.67
MIKRON 2.CD.050295.A Carbide Drill Shank 0.1574 DLC 0.1160 2.95MM - #32Drill Dia 0.5810 14.76MM 5.0XD Flute Length Carbide DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Coating DLC
Mach Side Connection Size 0.1575 4.00MM
Overall Length 2.5591 65.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1574 4.00MM
Flutes/Inserts 3
Tool Dia 0.1160 2.95MM - #32
Type Of Tool Drill
Included Angle 130°
Flute Length 0.5810 14.76MM
Cut Dia Min 0.1160 2.95MM - #32
Dia Deep 5.0x Dia
Multi Spindle Yes
