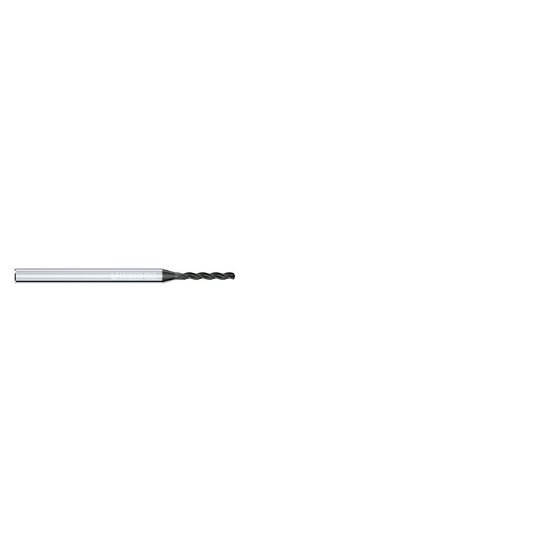

Picture of Micron 2.CD.050060.A Carbide Drill Solid 130° 0.023 Diameter Cylindrical 0.118 1.692 OAL 3 Flute 5.0XD

Micron 2.CD.050060.A Carbide Drill Solid 130° 0.023 Diameter Cylindrical 0.118 1.692 OAL 3 Flute 5.0XD

Part Number: MIK2.CD.050060.A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MIKRON
SKU: 1121703
Vendor: Sussex Tool and Supply
$77.09
MIKRON 2.CD.050060.A Carbide Drill Shank 0.1181 DLC 0.0236 0.60MM Drill Dia 0.1180 3.00MM 5.0XD Flute Length Carbide DLC Coating stands for diamond-like carbon coating, and is a nanocomposite coating that has unique properties of natural diamond low friction, high hardness, and high corrosion resistance.
Products specifications
Attribute name Attribute value
Shipping State CONNECTICUT
Made In USA NO
Cutter Type Carbide Drill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Brass, Copper, Plastic
Coating DLC
Mach Side Connection Size 0.1181 3.00MM
Overall Length 1.6929 43.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1181 3.00MM
Flutes/Inserts 3
Tool Dia 0.0236 0.60MM
Type Of Tool Drill
Included Angle 130°
Flute Length 0.1181 3.00MM
Cut Dia Min 0.0236 0.60MM
Dia Deep 5.0x Dia
Multi Spindle Yes
