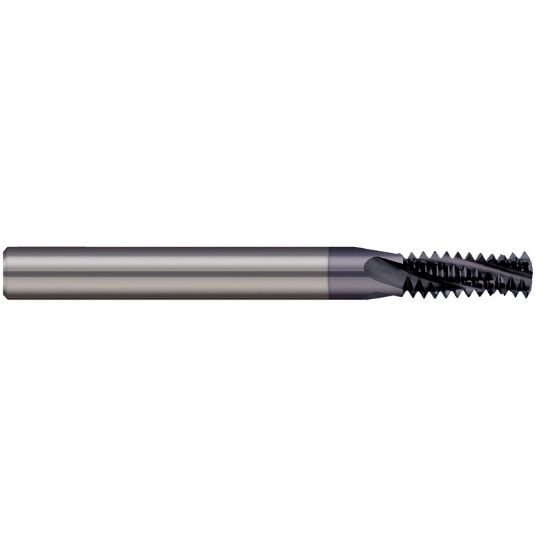

Picture of Micro 100 Tmm-060100X Thread Mill M6X1.00mm Metric

Micro 100 Tmm-060100X Thread Mill M6X1.00mm Metric

Part Number: MTRTMM-060100X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: 1291884
Vendor: Sussex Tool and Supply
$171.85
MICRO 100 Carbide ALTIN Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Idaho
Made In USA YES
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Aluminum, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating ALTIN
Mach Side Connection Size 0.2362 6.00MM
Overall Length 2.2441 57.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Tool Dia 0.1693 4.30MM
Type Of Tool Thread Mill
Cutter Style Carbide Thread Mill
Thread Pitch 1.00MM
Thread Type METRIC
Thread Size M6
