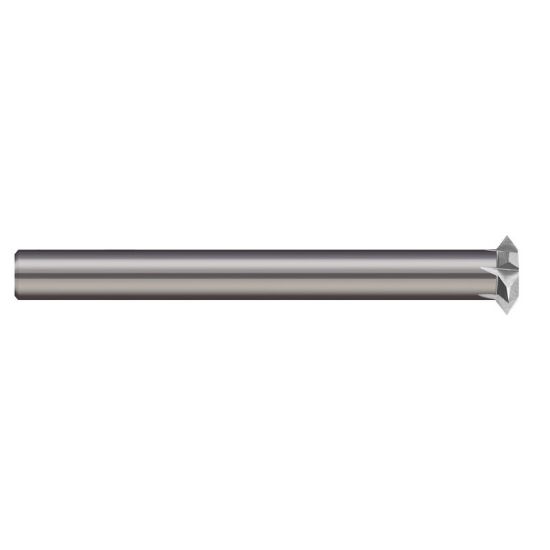

MICRO 100 TM-500* Thread Mill 11.00TPI-32.00TPI UN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MTRTM-500*
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Thread Milling
Shipping State Idaho
Dimensional Specifications
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Thread Type UN
Overall Len 2.6300 66.80MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.3125 7.94MM
Cutter Style Carbide Thread Mill
Thread Pitch 11.00TPI - 32.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
