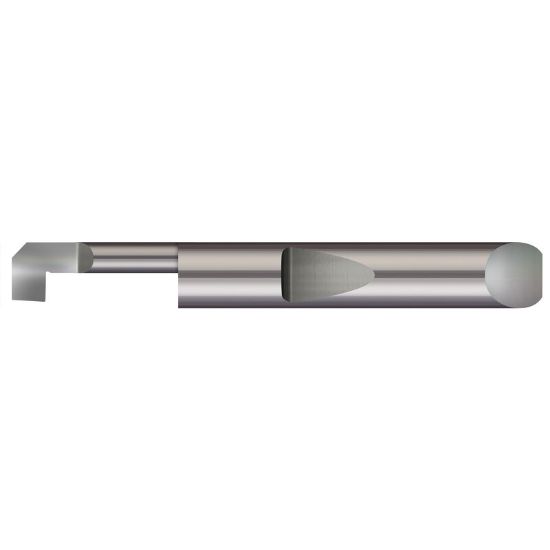

MICRO 100 QRB-3601500 Solid Tool Back Boring Swiss 0.375 Shank 0.36 Min Bore 3.000 OAL

ANSI: QRB-3601500

ISO: QRB-3601500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQRB-3601500
Delivery date: 3-5 days
$72.38

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert/Tool Tool
Application Int.Solid Back Turning, Swiss
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Overall Len 3.0000 76.20MM
Gauge Length 1.8530
Centerline Off Set 0.1720
Machine Side Connection Size 0.3750 9.53MM
Tool Over Hang 0.1300
Min Bore 0.3600
Corner Radius 0.0080 0.20MM
Neck Length 1.5000 38.10MM
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
