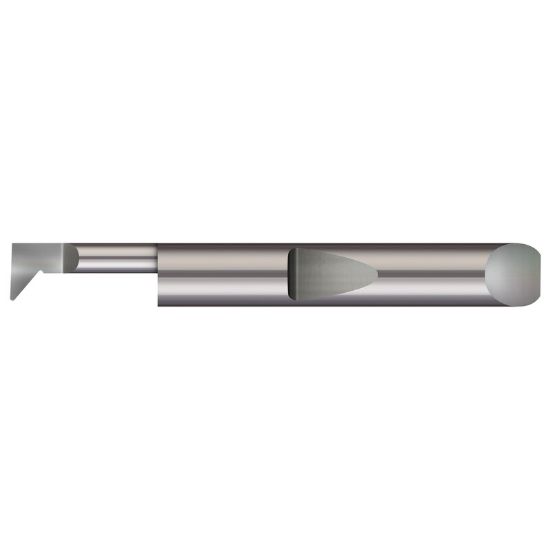

MICRO 100 QPR-4601800 Solid Tool Profiling Swiss 0.500 Shank 0.46 Min Bore 3.500 OAL

ANSI: QPR-4601800

ISO: QPR-4601800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQPR-4601800
Delivery date: 3-5 days
$103.30

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Application Swiss, Int.Solid Profiling
Made In USA Yes
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Machine Side Connection Size 0.5000 12.70MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Machine Side Connection Type Micro Qc System
Tool Material Carbide
Gauge Length 2.0400
Centerline Off Set 0.2100
Neck Length 1.8000 45.72MM
Overall Len 3.5000 88.90MM
Tool Over Hang 0.1500
Min Bore 0.4600
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
