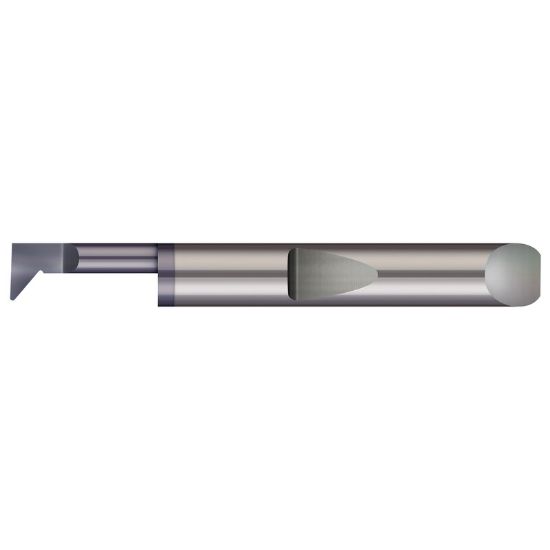

MICRO 100 QPR-1801000X Solid Tool Profiling Swiss 0.250 Shank 0.18 Min Bore 2.500 OAL

ANSI: QPR-1801000X

ISO: QPR-1801000X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQPR-1801000X
Delivery date: 3-5 days
$47.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Application Swiss, Int.Solid Profiling
Shipping State Massachusetts
Package Size 1
Made In USA Yes
Insert/Tool Tool
Dimensional Specifications
Min Bore 0.1800
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Centerline Off Set 0.0550
Corner Radius 0.0080 0.20MM
Tool Over Hang 1.0000
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
