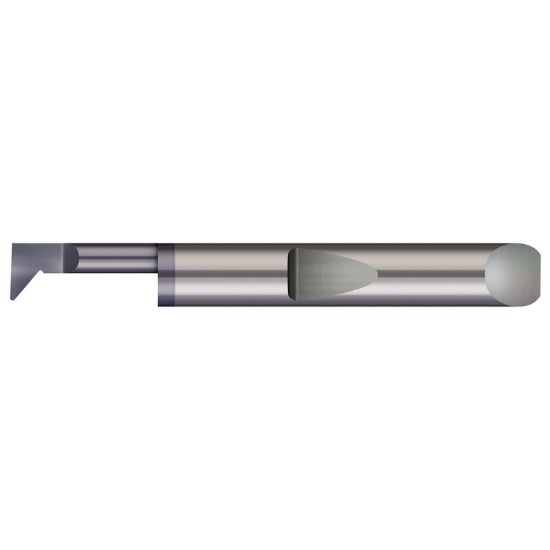

MICRO 100 QPR-1601000X Solid Tool Profiling Swiss 0.187 Shank 0.16 Min Bore 2.000 OAL

ANSI: QPR-1601000X

ISO: QPR-1601000X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQPR-1601000X
Delivery date: 3-5 days
$36.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Swiss, Int.Solid Profiling
Insert Application Semi Finishing, Finishing
Made In USA Yes
Shipping State Massachusetts
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Machine Side Connection Size 0.1875 4.76MM
Centerline Off Set 0.0660
Overall Len 2.0000 50.80MM
Min Bore 0.1600
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Machine Side Connection Type Micro Qc System
Tool Material Carbide
Tool Over Hang 1.0000
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
