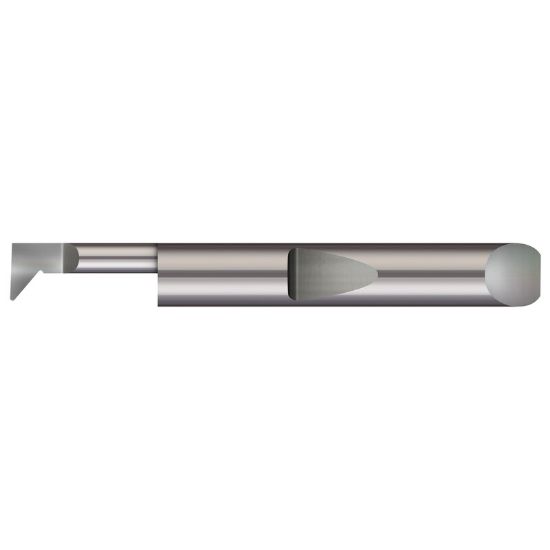

MICRO 100 QPR-1601000 Solid Tool Profiling Swiss 0.187 Shank 0.16 Min Bore 2.000 OAL

ANSI: QPR-1601000

ISO: QPR-1601000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQPR-1601000
Delivery date: 3-5 days
$33.22

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Application Swiss, Int.Solid Profiling
Dimensional Specifications
Neck Length 1.0000 25.40MM
Machine Side Connection Size 0.1875 4.76MM
Centerline Off Set 0.0660
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Min Bore 0.1600
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Corner Radius 0.0080 0.20MM
Overall Len 2.0000 50.80MM
Gauge Length 1.0900
Tool Over Hang 0.0500
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
