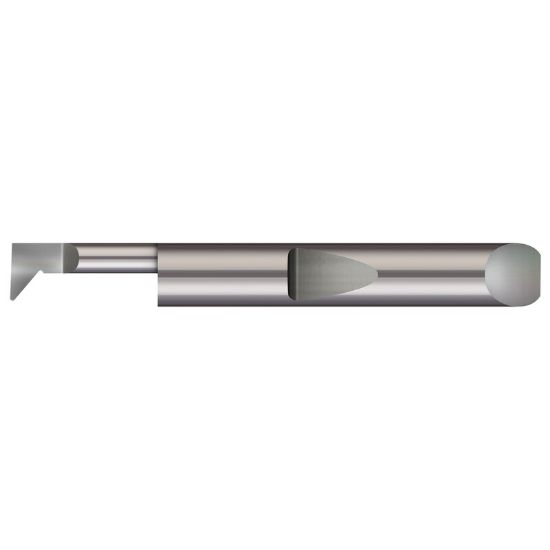

MICRO 100 QPR-120250 Solid Tool Profiling Swiss 0.187 Shank 0.12 Min Bore 1.500 OAL

ANSI: QPR-120250

ISO: QPR-120250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQPR-120250
Delivery date: 3-5 days
$33.22

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Insert/Tool Tool
Made In USA Yes
Insert Application Finishing, Semi Finishing
Application Int.Solid Profiling, Swiss
Dimensional Specifications
Corner Radius 0.0080 0.20MM
Neck Length 0.2500 6.35MM
Machine Side Connection Size 0.1875 4.76MM
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Tool Over Hang 0.0500
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Overall Len 1.5000 38.10MM
Min Bore 0.1200
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Gauge Length 0.5900
Centerline Off Set 0.0260
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
