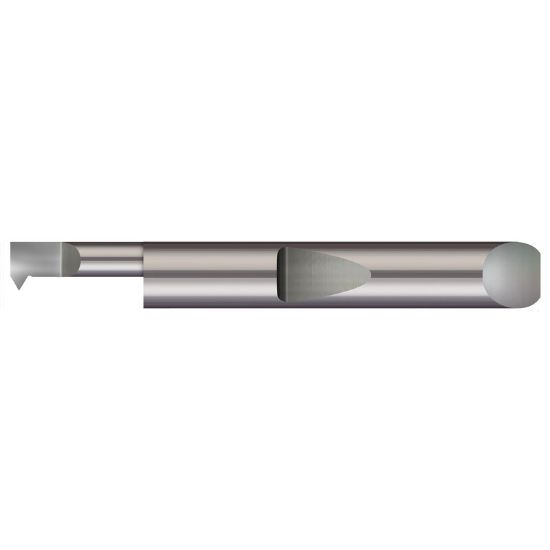

MICRO 100 QIT-3601800 Solid Tool Threading Swiss 0.375 Shank 0.36 Min Bore 3.000 OAL

ANSI: QIT-3601800

ISO: QIT-3601800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQIT-3601800
Delivery date: 3-5 days
$78.62

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Full Or Partial Profile Partial Profile
Application Int.Solid Threading, Swiss
Shipping State Massachusetts
Package Size 1
Insert Application Finishing, Semi Finishing
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Thread Pitch 10.00TPI - 32.00TPI 2.54MM - 0.79MM
Thread Type UN
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Min Bore 0.3600
Centerline Off Set 0.1730
Tool Over Hang 0.0850
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Neck Length 1.8000 45.72MM
Gauge Length 1.8530
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
