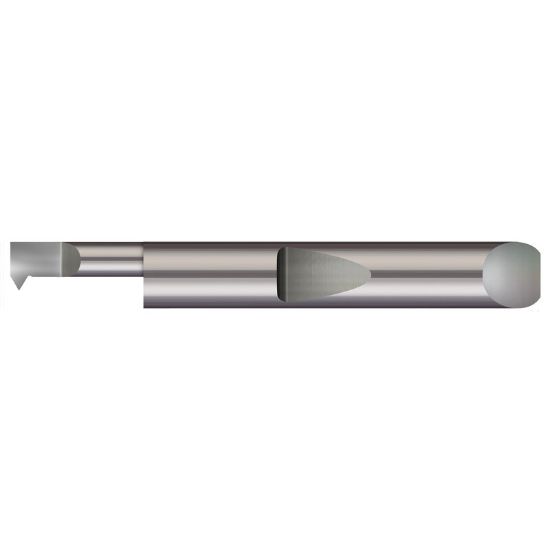

MICRO 100 QIT-1801000 Solid Tool Threading Swiss 0.250 Shank 0.18 Min Bore 2.500 OAL

ANSI: QIT-1801000

ISO: QIT-1801000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQIT-1801000
Delivery date: 3-5 days
$43.78

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Solid Threading, Swiss
Shipping State Massachusetts
Package Size 1
Full Or Partial Profile Partial Profile
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Made In USA Yes
Dimensional Specifications
Overall Len 2.5000 63.50MM
Thread Type UN
Neck Length 1.0000 25.40MM
Min Bore 0.1800
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Thread Pitch 18.00TPI - 56.00TPI 1.41MM - 0.45MM
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Gauge Length 1.3530
Tool Over Hang 0.0400
Centerline Off Set 0.0550
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
