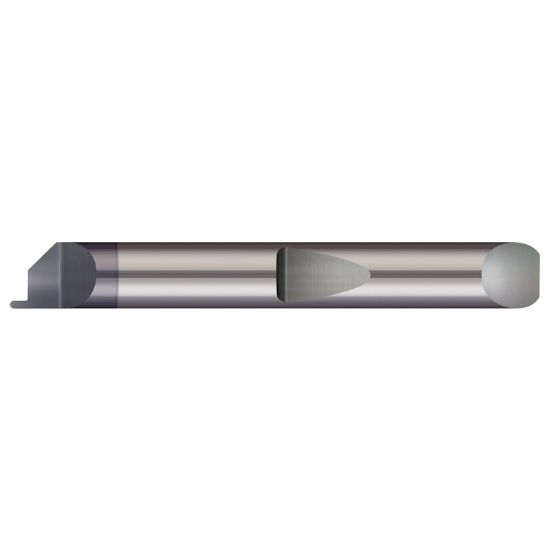

Picture of MICRO 100 QFGF-230-020X Solid Tool Face Grooving Swiss 0.250 Shank 0.24 Min Bore 2.000 OAL

MICRO 100 QFGF-230-020X Solid Tool Face Grooving Swiss 0.250 Shank 0.24 Min Bore 2.000 OAL

ANSI: QFGF-230-020X

ISO: QFGF-230-020X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQFGF-230-020X
Delivery date: 3-5 days
$40.22

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Insert Application Semi Finishing, Finishing
Application Int.Solid Face Grooving, Swiss
Insert/Tool Tool
Dimensional Specifications
Corner Radius 0.0100 0.25MM
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Face Groove Max Dia 0.1900
Machine Side Connection Size 0.2500 6.35MM
Tool Over Hang 0.1900
Min Bore 0.2400
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Overall Len 2.0000 50.80MM
Centerline Off Set 0.1050
Face Groove Min Dia 0.0500
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Inter/Extern Internal
Cutting Edge Mat Carbide
