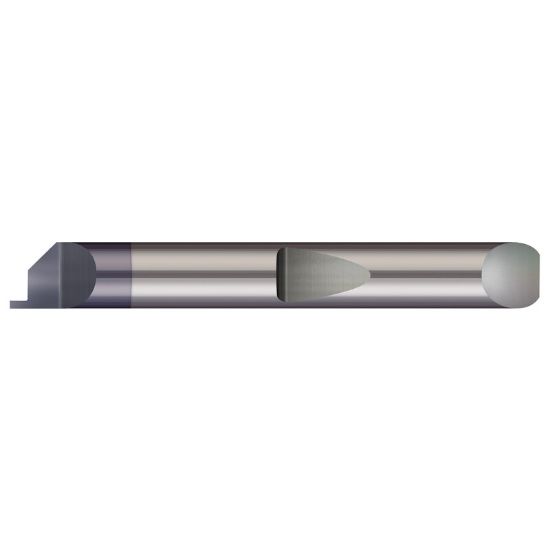

Picture of MICRO 100 QFG-470-093X Solid Tool Face Grooving Swiss 0.500 Shank 0.48 Min Bore 2.500 OAL

MICRO 100 QFG-470-093X Solid Tool Face Grooving Swiss 0.500 Shank 0.48 Min Bore 2.500 OAL

ANSI: QFG-470-093X

ISO: QFG-470-093X

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQFG-470-093X
Delivery date: 3-5 days
$82.51

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Solid Face Grooving, Swiss
Shipping State Massachusetts
Package Size 1
Insert Application Finishing, Semi Finishing
Made In USA Yes
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Face Groove Max Dia 0.3350
Machine Side Connection Size 0.5000 12.70MM
Face Groove Min Dia 0.4800
Overall Len 2.5000 63.50MM
Tool Over Hang 0.3350
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Min Bore 0.4800
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Centerline Off Set 0.2200
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
