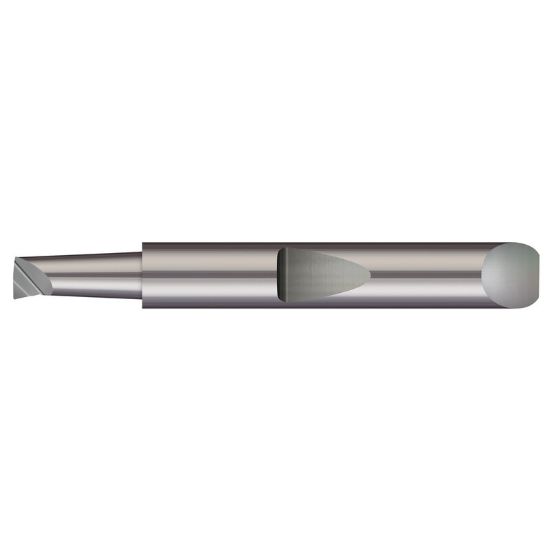

MICRO 100 QBM-3001000 Solid Tool Boring Swiss 0.375 Shank 0.3 Min Bore 2.500 OAL

ANSI: QBM-3001000

ISO: QBM-3001000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQBM-3001000
Delivery date: 3-5 days
$65.18

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Int.Solid Turning, Swiss
Shipping State Massachusetts
Package Size 1
Insert Application Finishing, Semi Finishing
Made In USA Yes
Dimensional Specifications
Min Bore 0.3000
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Corner Radius 0.0080 0.20MM
Overall Len 2.5000 63.50MM
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Neck Length 1.0000 25.40MM
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Machine Side Connection Size 0.3750 9.53MM
Gauge Length 1.3530
Centerline Off Set 0.1450
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
