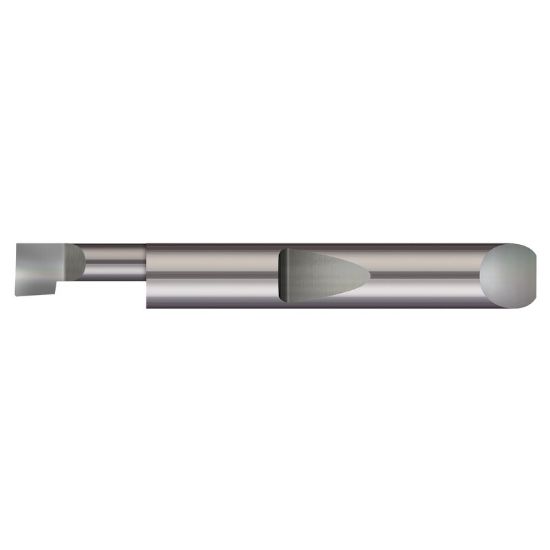

MICRO 100 QBB-4902500 Solid Tool Face Grooving, Boring Swiss 0.500 Shank 0.49 Min Bore 4.000 OAL

ANSI: QBB-4902500

ISO: QBB-4902500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQBB-4902500
Delivery date: 3-5 days
$105.41

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Package Size 1
Application Int.Solid Face Grooving, Swiss
Made In USA Yes
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Face Groove Min Dia 0.4900
Face Groove Max Dia 0.5100
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Overall Len 4.0000 101.60MM
Tool Over Hang 0.1230
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Min Bore 0.4900
Corner Radius 0.0050 0.13MM
Gauge Length 2.5400
Neck Length 2.5000 63.50MM
Centerline Off Set 0.2400
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
