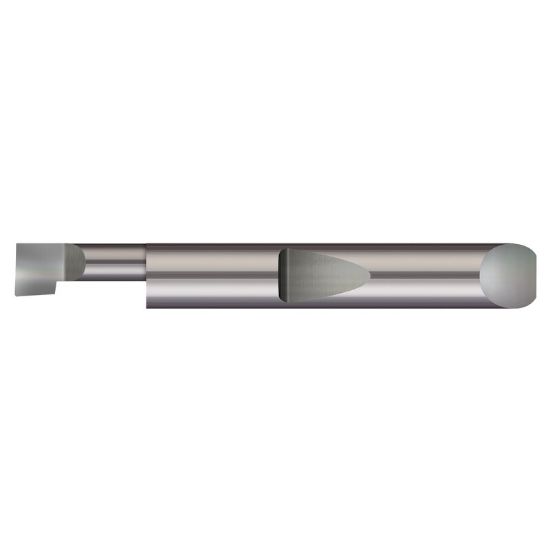

MICRO 100 QBB-3201800 Solid Tool Face Grooving, Boring Swiss 0.375 Shank 0.32 Min Bore 3.000 OAL

ANSI: QBB-3201800

ISO: QBB-3201800

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQBB-3201800
Delivery date: 3-5 days
$72.38

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Insert Application Finishing, Semi Finishing
Shipping State Massachusetts
Made In USA Yes
Application Int.Solid Face Grooving, Swiss
Dimensional Specifications
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Face Groove Min Dia 0.3200
Face Groove Max Dia 0.3400
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Machine Side Connection Type Micro Qc System
Min Bore 0.3200
Neck Length 1.8000 45.72MM
Gauge Length 1.8530
Overall Len 3.0000 76.20MM
Corner Radius 0.0050 0.13MM
Machine Side Connection Size 0.3750 9.53MM
Tool Over Hang 0.0800
Centerline Off Set 0.1320
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
