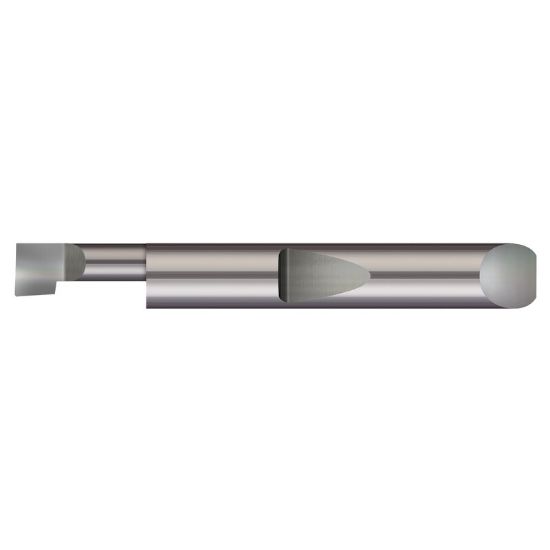

MICRO 100 QBB-110700 Solid Tool Face Grooving, Boring Swiss 0.187 Shank 0.11 Min Bore 2.000 OAL

ANSI: QBB-110700

ISO: QBB-110700

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MICRO 100
SKU: MICQBB-110700
Delivery date: 3-5 days
$33.02

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Solid Face Grooving, Swiss
Insert/Tool Tool
Insert Application Finishing, Semi Finishing
Made In USA Yes
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Gauge Length 1.0900
Face Groove Max Dia 0.1220
Min Bore 0.1100
Tool Over Hang 0.0280
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Neck Length 0.7000 17.78MM
Corner Radius 0.0030 0.08MM
Face Groove Min Dia 0.1100
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Tool Material Carbide
Machine Side Connection Type Micro Qc System
Centerline Off Set 0.0160
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Internal
